Reln

• Divert runoff water with this RELN drainage channel
• Its grate design allows easy installation with just a clip-in
• The 40 in L x 5 in W Storm Drain channel prevents flooding and pooling
• With UV stabilized moulded plastic, the channel is tough and durable
• The pool drainage channel has a U-shape profile that aids in self-cleaning

• The Storm Drain complete drainage system is easy to install and allows maximum flexibility in solving your drainage requirements around the home or light commercial applications
• Typical uses include driveways, pools and walkways wherever excess water and erosion are a problem
• The systems design allows maximum flexibility in length of channels, corners and intersections
• You can connect Storm Drain to Mole-Piper 4in. storm water pipes with bottom or end outlet, Inline collection pit, and prevent leaves or other debris clogging pipes or waterways with the Leaf Guard
• The tough durable and lightweight UV stabilized plastic channel includes stainless steel grate to suit domestic pedestrian and vehicle traffic.
• 4.72-in. wide channel drain for all domestic drainage applications
• Supports domestic passenger vehicles (with appropriate installation in concrete)
• Tough and durable lightweight plastic moulding which is easy to assemble and install
• Height: 5.08 in
• Width: 4.75 in
• Depth: 39.4 in
• Weight: 8.82 lbs

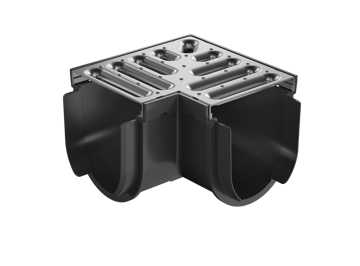

The Storm Drain Corner allows a 90-degree change of direction in RELN Storm Drain Channels. The unique design allows left or right turns and is easy to install.

The Storm Drain Corner allows a 90-degree change of direction in RELN Storm Drain Channels. The unique design allows left or right turns and is easy to install.

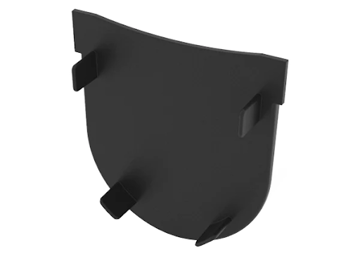

• Prevent outdoor flooding and pooling water with the RELN Storm Drain deep profile channel drain
• Fits Storm Drain channel and Inline Catch Basin
• Install on end of channel to block water flow
• Clip in and out design - no screws required
• Durable UV stabilized polypropylene construction
• Height: 4.72 in
• Width: 5.08 in
• Weight: 0.1 lbs

• RELNs 4 in. Corrugated Pipe Adapter is designed to snap into 4 in. drain pipe for making quick and easy connections to the RELN drainage system
• Made of ABS material, it can glue to the Storm Drain End Outlet and the Vortex Pit bottom outlet. Adapts corrugated pipe to sewer and drain pipe
• Glues into a storm drain end outlet and vortex basin bottom outlet
• Snap-fit into 4 in. corrugated pipe and glues to 4 in. sewer PVC pipe
• Easy to assemble and install
• Tough and durable lightweight ABS plastic
• Secure connection
• For residential applications, rated for in-ground use
• Height: 4.88 in.
• Width: 4.75 in.
• Weight: 0.88 lbs.
